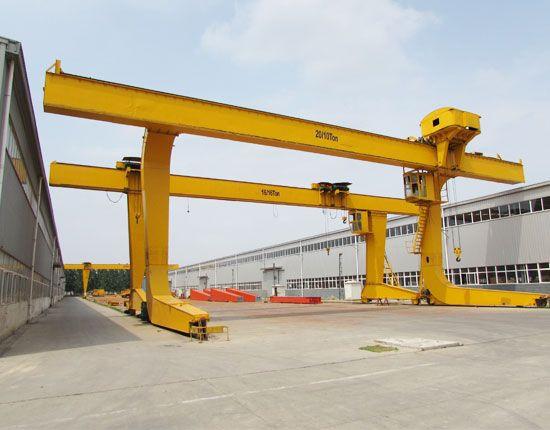

Electric Top Running Single Girder Gantry Crane Span 18m-35m
single girder gantry crane is generally equipped with CDMD electric hoist. It’s also can be designed to be European Standard and equipped with European Standard electric wire rope hoist.
Technical parameters
| lifting capacity | t | 10 |
| span | m | 12 | 16 | 20 | 24 | 30 |
| lifting height | m | 6/9 | 9 |
| traveling mechanism | traveling speed | ground | m/min | 20 |
| controlling room | | 30 40 | | | | |
| motor | ground | | YZR132M2-6/4*2 | YZR160m1-6/6.3*2 |
| controlling room | | YZR160m1-6/6.3*2 | YZR160m2-6/8.5*2 |
| reducer | | | ZSC400 | ZSC(A)600 |
| wheel diameter | | M | 400 | 500 |
| electric hoist | Type No. | | | CD1 ,MD1 |
| lifting speed | | m/min | 7/0.7 |
| traveling speed | | m/min | 20 |
| motor | lifting | | ZD151-4/13 ZDS1 2.2/13 |
| traveling | | ZDY121-4/0.8*2 |
| Working system | | A4 |
Single Girder Gantry Crane features
1. Metal part
This electric hoist gantry crane is mainly composed of the main beam, supporting leg and lower beam.
The main beam and lower beam are box structure welded by four steel plates, and the supporting leg is box structure welded by four steel plates.
The electric hoist walks directly under the i-steel lower flange plate of the main beam.
For convenient storage and transportation, the main beam, supporting leg and lower beam is connected with M20 bolts to become one.
2. Electric hoist
Wire rope lifting, single speed, with traveling trolley and reducer, drum and motor, include overload limiter switch
Protection class F class
Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing, equipped with belt buckle and wire ropes sheath
Nanjing special brand motor, soft start for smooth running, long design service life, the best motor in China
Self-produced. Drums made of high-quality seamless steel processed by the CNC machine.
Rope guide made of engineering plastic, lightweight, excellent wear resistance, reducing tear and wear of wire rope
High-quality wire rope, Strength of extension: 1670 N/m2
3. Operating mechanism
This product is in the form of separate drive, drive braking by cone rotor motor to complete;
Transmission is the use of "one open and one close" gear transmission.
4. Electrical equipment
Module control speed, micro-speed and double speed;
Traveling and lifting smoothly;
The power for trolley moving adopts flat cable, sliding smoothly;
Control box layout is reasonable, easy to repair;
Protection class IP55;
Optional main power source ;
All external cable line number with the mark;
Safety smooth touchline, high conductivity, small pressure drop;
Lightweight, installation convenience;
Set electric taxi speed is high, ensure continuous power supply;
Optional speed control module, and can realize the micro speed and double speed.
5. The specification of this product is expressed as follows:
(1).Ground controlling
Example: lifting weight 5t, span 7m, working-level A3.
Representation: MH5-7A3-D JB/t5663-2008
D is for ground control.
6.rail system:
Crane rails, clamp plate & press plate
High quality reputed make
Single Girder Gantry Crane features
1. Large lifting capacity, low headroom, small wheel-pressure, stable operation;
2. Fast positioning, ergonomic design, comfortable operation;
3. Through the strict test, long working life, short maintenance;
4. Safe and reliable, enhance productivity, create greater benefits;
5. More beautiful appearance, more comfortable operation for workers;
6. Don't need to change the building structure, meet the demand for logistics easily.
